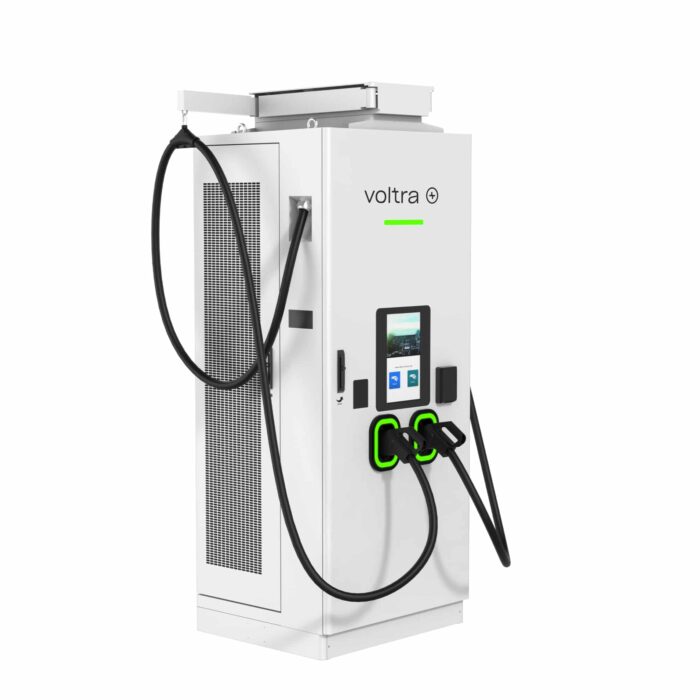

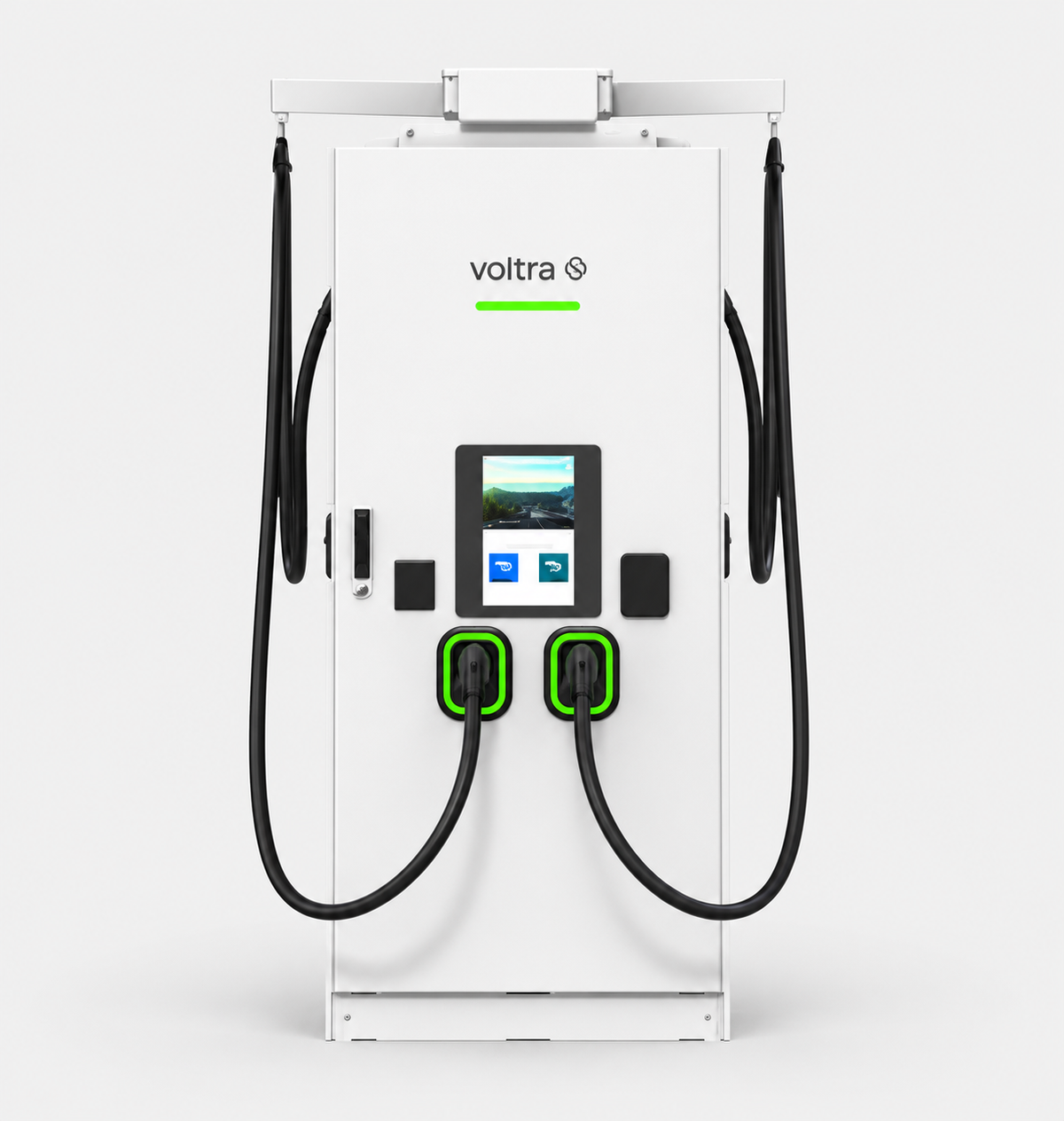

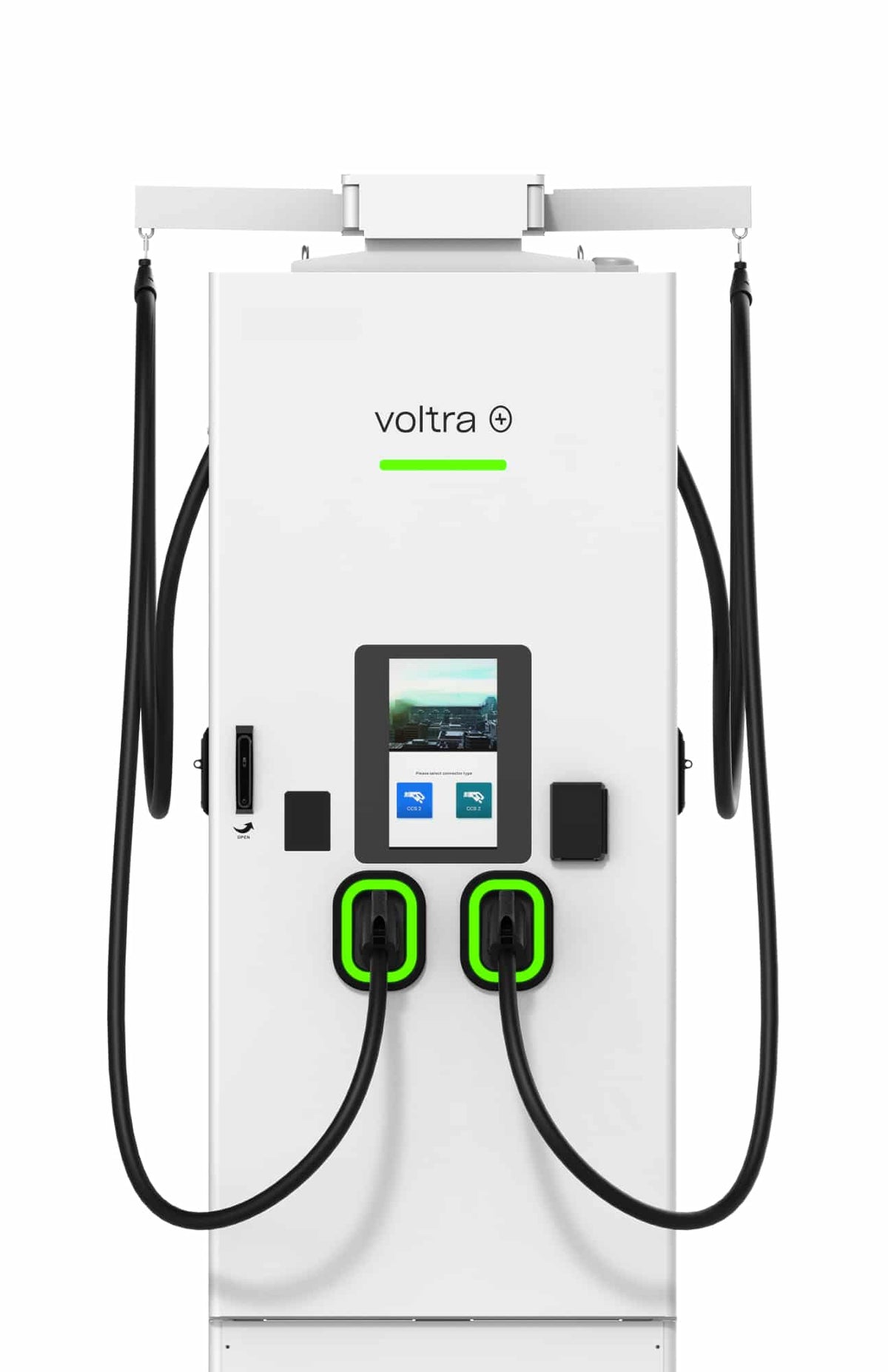

VOLTRA+ Charging 160kW, Dual Connector: 350A CCS2+350A CCS2, Output: 200-1000 Vdc
Couldn't load pickup availability
De 160kW geïntegreerde laadpaal is een compact, alles-in-één DC-oplaadstation, perfect voor stedelijke en geluidsgevoelige locaties, met een maximaal vermogen van 160kW. Dankzij het modulaire ontwerp en de flexibele stroom configuratie biedt deze laadpaal een snelle, efficiënte en gebruiksvriendelijke laadoplossing.
All in One laadpaal
| Ingangs voltage | 400 VAC +/- 10% |
| Max ingangsstroom | 299A |
| Max ingangsvermogen | 177kVA |
| Uitgangs voltage | CCS2: 200–1000 Vdc CHAdeMO: 200–500 Vdc |
| Nominaal uitgangsvermogen | DC: 160 kW |
| Maximale stroom per connector | CCS2: 350 A CHAdeMO: 125 A |
| Connector opties | CCS2 / CCS2+CCS2 / CCS2+CHAdeMO |
| Kabellengte | 5 m (totaal; buitenlader ca. 4,5 m) |
| Scherm | 15″ HD touchscreen |
| Gebruikersauthenticatie / Betaling | RFID & App (mobiel); Visa/Master optioneel |
| Connectiviteit | 4G / LAN (Ethernet) |
| Gebruikstemperatuur | −25 °C tot +65 °C Tot 50 °C: 100% vermogen; 50–65 °C: lineaire derating; ≥65 °C: module uitschakeling |
| IP en IK rating | IP55 / IK10 |
| Afmetingen (B×D×H) | 850 × 750 × 2000 mm |
| Gewicht | ≤ 500 kg |
| Koelmethode | Luchtgekoeld |
| Noodknop | Ja |
| Normen | IEC 61851, IEC 62196, DIN 70121, ISO 15118 |
| Certificering | CE, TUV, MID compatibel |
The integrated EMS automatically optimizes consumption, storage, and grid load. In the event of a power outage, the system switches to backup power within ≤10 ms.
With a built-in EMS (Energy Management System), support for peak shaving, and flexible charge and discharge settings, energy balance is automatically adjusted to consumption, grid status, and storage.
With an IP66 enclosure, silent passive cooling, and real-time monitoring via app or WiFi, the inverter offers reliability, ease of use, and minimal maintenance requirements.
