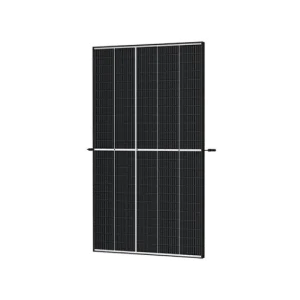

The TSM-400DE09.08 solar panel offers an excellent balance of power, efficiency, and durability. With a power output of 400W and a high efficiency of 19.5% to 21% , this panel is an excellent choice for both residential and commercial applications. Its robust warranties ensure long-lasting performance, while its compact size and weight make it easy to install. This panel is a reliable option for anyone seeking an efficient and long-lasting solar energy solution.
Features of the TSM-400DE09.08 Solar Panel:
Panel type : Monocrystalline solar panel
Power : 400 Wp (Watt peak), which means that the panel can supply a maximum of 400 watts of energy under ideal conditions.
Maximum operating voltage (Vmp) : 38.3V
Open circuit voltage (Voc) : 45.9V
Maximum working current (Imp) : 10.44A
Short-circuit current (Isc) : 11.08A
Cell structure : Monocrystalline, which provides higher efficiency and better performance at lower light levels or in shady conditions.
Dimensions : 1755x1046x35mm
Weight : 21.5 kg
Efficiency : The panel's conversion efficiency is typically between 19.5% and 21% , which ensures excellent energy yield.
Frame : The panel features a robust aluminum frame that provides protection against corrosion and is resistant to various weather conditions.
Glass : The panel is equipped with tempered glass which increases durability and ensures better light transmission.
Maximum Power Output (Pmax) : 400W at standard test conditions (STC).
Temperature coefficient : Approximately -0.37% per °C , which means the panel performs well at higher temperatures.
Insulation : The panel is designed to operate efficiently in both sunny and partly cloudy conditions, making it a versatile choice for various climates.
Warranty:
Product warranty : 10-year manufacturer's warranty against material and manufacturing defects. This warranty covers defects resulting from manufacturing errors or faulty materials.
Power Warranty : 25-year linear power warranty . For the first 10 years, the panel will continue to deliver at least 90% of its original output. After 25 years , the output will still be at least 80% of its original output.
Durability : The panel is designed to withstand harsh weather conditions such as rain, snow, and strong winds, thanks to its robust frame and tempered glass.
Reliability : The 25-year power warranty provides peace of mind knowing the panel will continue to deliver reliable performance for many years to come.
Cost-effective : Thanks to its high efficiency and 400W power, this panel offers good value for money for larger solar installations.
