Solar Space 700wp SS9-66HDH Silver Frame
Solar Space 700wp SS9-66HDH Silver Frame
1028 in stock
- 100% certified
- Ready for Installation
- Fast delivery within NL & BE
Couldn't load pickup availability

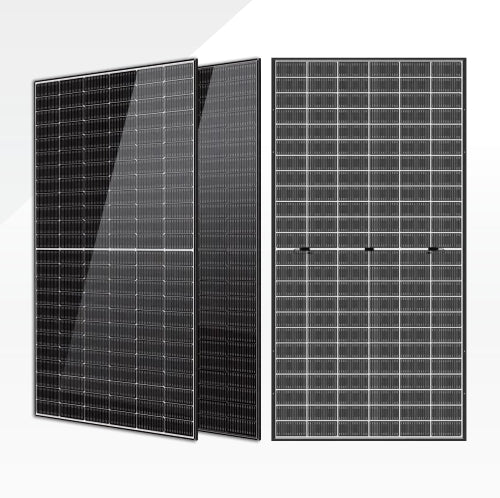

The SolarSpace SS9-66HD 700 Wp Silver Frame panel is a powerful, modern n-type monocrystalline solar panel with bifacial glass-glass construction. Thanks to its high-quality cell technology and robust module design, this panel offers high efficiency, strong performance, and a long lifespan, making it ideal for both residential and commercial installations seeking maximum yield.

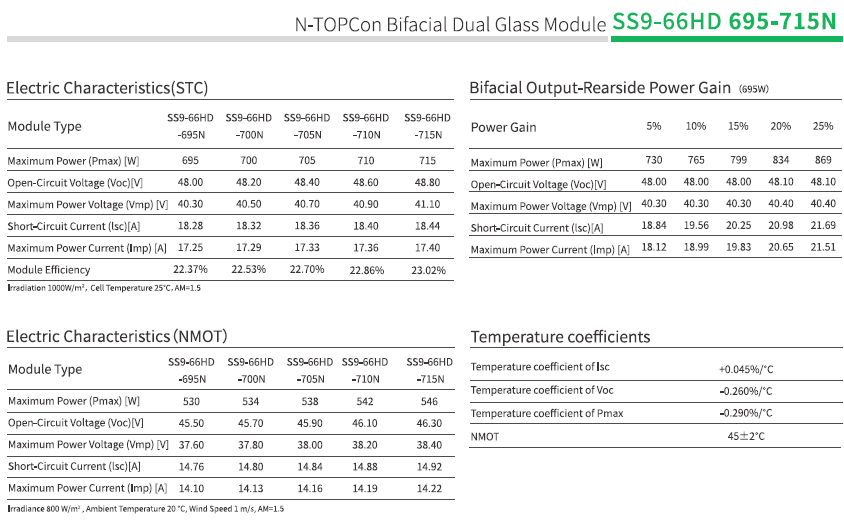

Technical specifications (STC / Nominal)
| Parameter / Property | Value / Characteristic |
|---|---|
| Nominal peak power (Pmax) | 700 Wp |
| Cell type | n-type TOPCon |
| Module type / Construction | Bifacial — glass-glass (glass/glass) |
| Frame color | Silver/white (silver frame) |
| Module efficiency (STC) | approximately 22.53% with 700 Wp variant |
| Power tolerance | 0 ~ +3% |
| Vmpp (voltage at max. power) | ~ 40.5 V |
| Impp (current at max. power) | ~ 17.29 A |
| Voc (open-circuit voltage) | ~ 48.2 V |
| Isc (short-circuit current) | ~ 18.32 A |
| System voltage (max.) | Up to 1500 V DC |

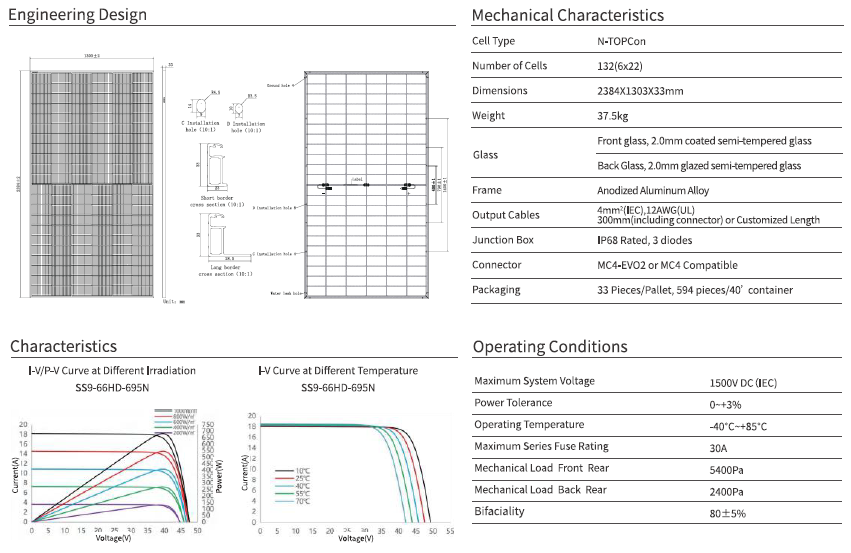

| Dimensions (H x W x D) | 2384 × 1303 × 33 mm |
| Weight | 37.5 kg |
| Mechanical load capacity | Snow load up to 5400 Pa, wind load up to 2400 Pa — suitable for severe weather conditions. |
| Connector / Cable | Stäubli MC4-EVO2, cable ± 300 mm (+ / –) |
| Bypass diodes / Junction box | 3 bypass diodes, IP68 junction box protection |
| Warranty | Product warranty 15 years; power warranty 30 years with retention of 87–87.4% of nominal power. |
Advantages
High yield per panel — with a nominal capacity of 700 Wp, you get a lot of energy from each panel; ideal for limited roof space or when working to maximum capacity.
Efficiency & Quality — n-type TOPCon cells and glass-glass construction ensure good efficiency and low degradation, resulting in a long lifespan and stable output over years.
Bifacial operation — ability to also utilize light reflected from the substrate (e.g. light roofs, roofing or snow), which can provide additional yield.
Robust & weather resistant — high snow and wind loads make this panel suitable for installation in a wide range of climates and weather conditions.
High system compatibility — support of 1500 V system voltage makes the panel suitable for modern large-scale or commercial PV installations.
Suitable for long-term investments — thanks to the high warranty and low degradation, the panel is a solid choice for projects where durability and reliability are important.
