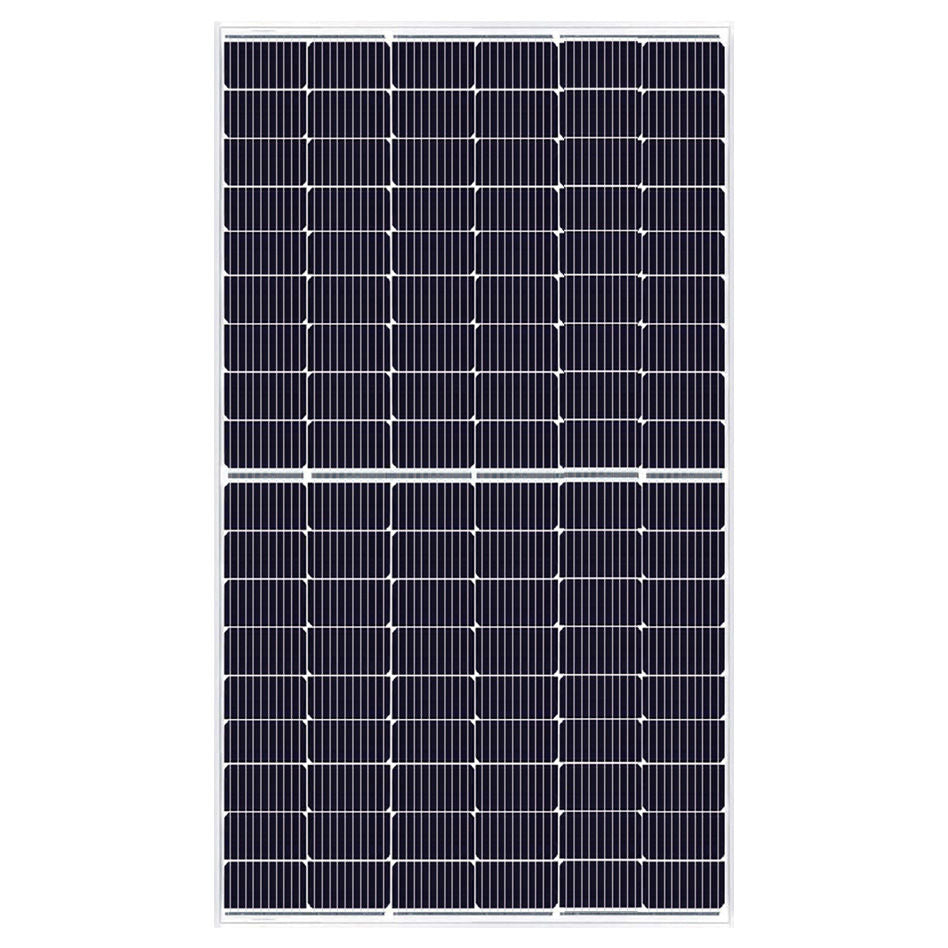

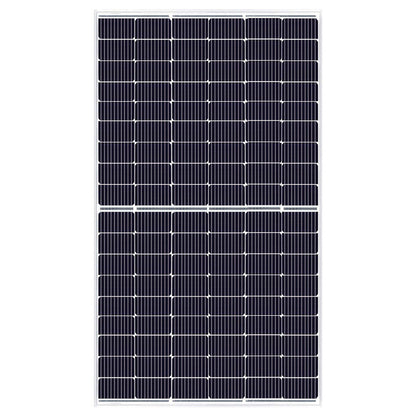

Phono Solar Draco 560Wp PS560M7GFH-24
Couldn't load pickup availability
The PS560M7GFH-24/TNH solar panel offers an excellent solution for large-scale solar installations. With a power output of 560 Wp , a high efficiency of 20-22% , and robust warranties, the panel offers both reliable performance and durability, making it an ideal choice for commercial and industrial applications.
Features of the PS560M7GFH-24/TNH Solar Panel:
Panel type : Monocrystalline solar panel
Power : 560 Wp (Watt peak)
Voltage :
Maximum operating voltage (Vmp) : 39.2V
Open circuit voltage (Voc) : 47.6V
Maximum working current (Imp) : 14.3A
Short-circuit current (Isc) : 15.3A
Cell structure : Monocrystalline, which ensures higher conversion efficiency and better performance under less than ideal light conditions (e.g. cloudy or in the morning and evening).
Dimensions : 2048x1004x40
Weight : 27kg
Efficiency : The conversion efficiency of this panel is usually between 20% and 22% , making it a very efficient panel for generating solar energy.
Frame : Robust aluminum frame ensures long life and corrosion resistance. The frame is designed to withstand harsh weather conditions such as rain, snow, and strong winds.
Glass : The panel features tempered, anti-reflective glass for better performance in various light conditions and increased durability.
Performance:
Maximum Power Output (Pmax) : 560W at Standard Test Conditions (STC).
Temperature coefficient : Approximately -0.35% per °C , which means the panel's performance remains relatively stable at higher temperatures.
Insulation : The panel is designed to perform well in both sunny and less sunny conditions, making it suitable for use in various climates.
Product warranty : 12-year manufacturer's warranty against material and manufacturing defects. This covers defects resulting from manufacturing issues or faulty materials.
Power Warranty : 25-year linear power warranty . For the first 10 years , the panel will continue to deliver at least 90% of its original power. After 25 years, the panel will still deliver at least 80% of its original power, confirming its long lifespan and reliability.
Advantages:
-
High Power : With a power output of 560W , this panel delivers an exceptional amount of energy, making it ideal for large commercial and industrial installations, or for residents who need high output in a limited space.
-
Efficiency : The 20-22% efficiency ensures a high energy yield compared to many other panels, even in less than ideal lighting conditions.
-
Durable and Reliable : The panel is designed to withstand harsh weather conditions and is built for long-term use. The quality of the materials and construction ensures excellent performance for years to come.
-
Cost-effective : Despite its higher power, this panel offers good value for money, especially for larger installations where high energy requirements are required.
-
Long-term warranty : The long product and power warranty provides peace of mind about the panel's performance throughout the life of the installation.
The integrated EMS automatically optimizes consumption, storage, and grid load. In the event of a power outage, the system switches to backup power within ≤10 ms.
With a built-in EMS (Energy Management System), support for peak shaving, and flexible charge and discharge settings, energy balance is automatically adjusted to consumption, grid status, and storage.
With an IP66 enclosure, silent passive cooling, and real-time monitoring via app or WiFi, the inverter offers reliability, ease of use, and minimal maintenance requirements.
