AIO Cabinet ECO-E101WX 100kW/101kWh
Couldn't load pickup availability

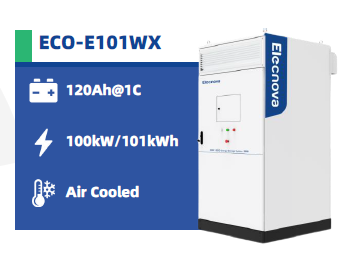

The Elecnova ECO-E101WX is a solid choice for commercial or industrial applications requiring storage capacity around 100 kWh and power output of ~100 kW. Its fully integrated cabinet design, robust specifications, and flexible voltage/grid requirements make it a practical solution for peak management, self-consumption, or renewable energy integration.
According to the manufacturer, the system has a nominal AC output power of 100 kW and an energy capacity of 101 kWh .

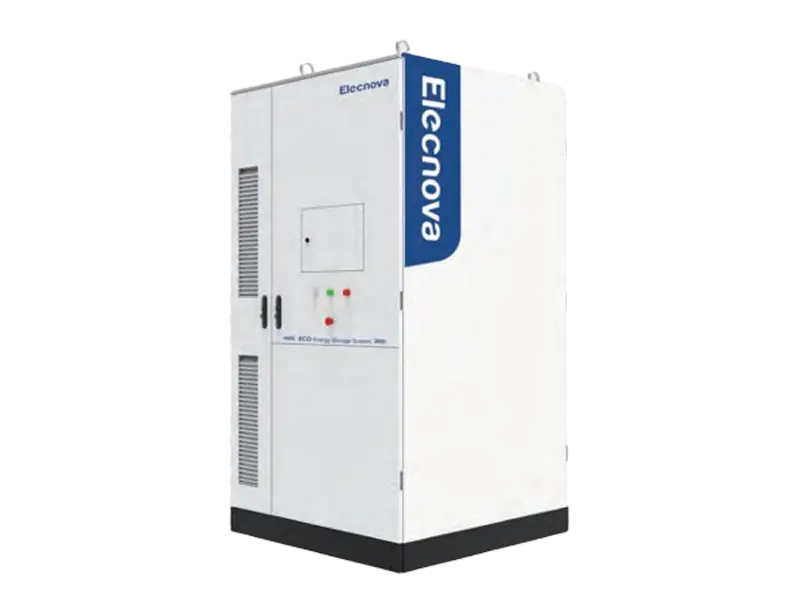

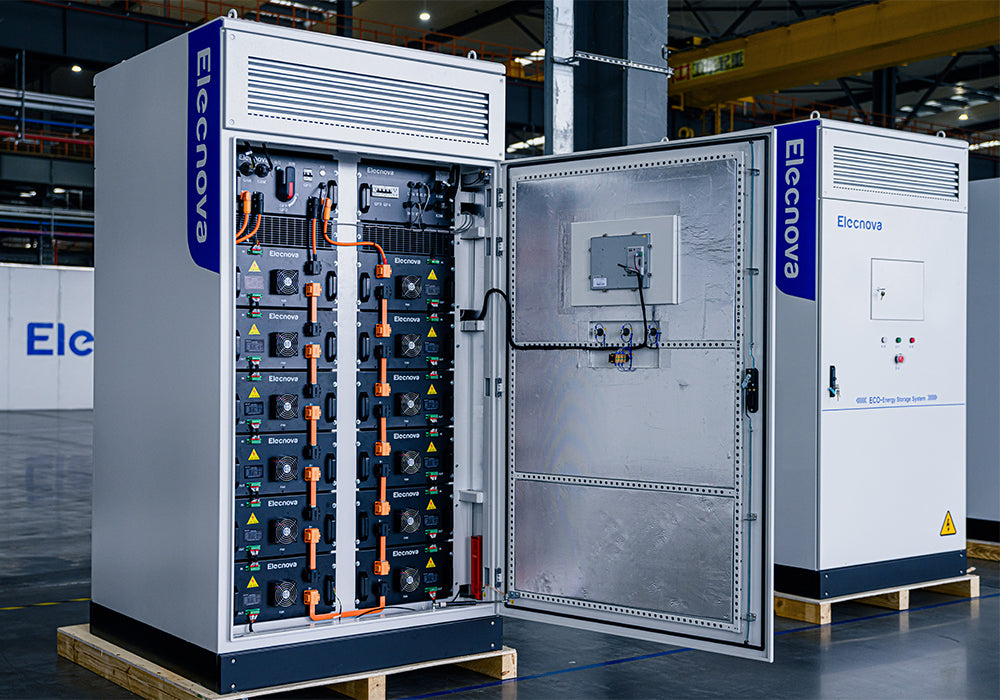

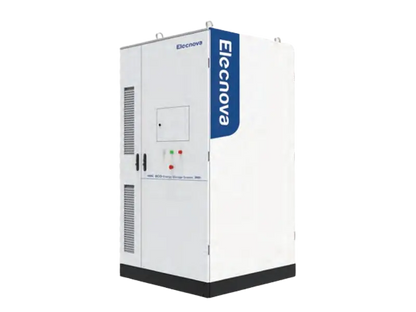

The device combines battery modules, inverter/PCS, BMS/EMS, cooling and safety devices in one cabinet, making installation easier.
An overview of the most important specifications:
DC side
Cell type: LFP 120 Ah.
Battery system: 1P264S.
Nominal energy: 101 kWh.
Nominal DC voltage: 844.8 V.
Voltage range: 739.2 V to 950.4 V
AC side
Nominal power: 100 kW.
Maximum power: 110 kW.
Rated AC voltage: 400 V AC / 3P+N+PE.
Frequency: 50/60 Hz.
Harmonic distortion (THDi): ≤ 3%.
Power factor: from -1 (if leading) to +1 (if lagging).
General
Efficiency (round trip): ≥ 89%.
Depth of discharge (DoD): 95% (at 25±2 °C).
Cycle life: ≥ 6,000 cycles.
Protection degree: IP55.
Cooling: Forced air cooling.
Operating temperature: –25 °C to +55 °C.
Dimensions (W × D × H): 1,250 × 1,200 × 2,250 (mm) according to some source.
Weight: approximately 2,000 kg. s
Fire protection: integrated aerosol system.
High integration : The all-in-one cabinet design combines the battery, inverter/PCS, BMS/EMS, cooling, and safety devices. This reduces external components and simplifies installation.
Flexible voltage range : The wide DC voltage range enables connection to various PV systems or other DC sources.
Good mains quality : Low harmonic distortion and power factor control make this unit suitable for industrial grids or commercial installations.
Suitable for C&I scenarios : With 101 kWh capacity and 100 kW power, it is suitable for peak shaving, load shifting, solar power integration, or emergency power in medium-sized installations.
Robust operation : IP55 housing combined with a wide temperature and humidity capacity allows for outdoor or semi-outdoor installation (provided according to specification).
The integrated EMS automatically optimizes consumption, storage, and grid load. In the event of a power outage, the system switches to backup power within ≤10 ms.
With a built-in EMS (Energy Management System), support for peak shaving, and flexible charge and discharge settings, energy balance is automatically adjusted to consumption, grid status, and storage.
With an IP66 enclosure, silent passive cooling, and real-time monitoring via app or WiFi, the inverter offers reliability, ease of use, and minimal maintenance requirements.
